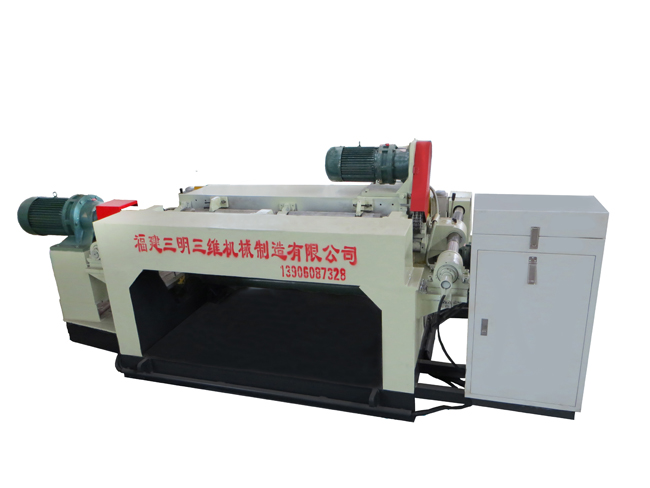

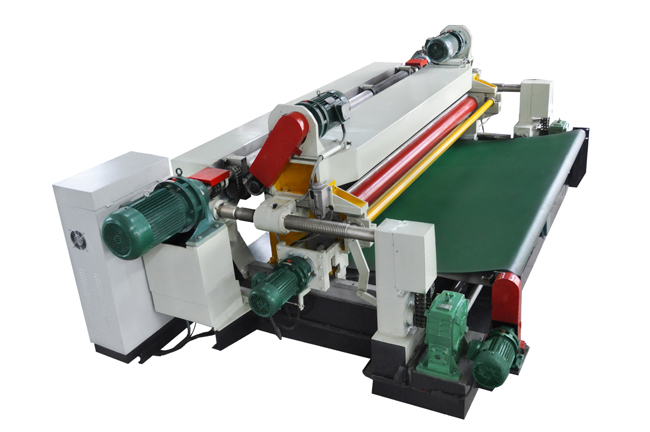

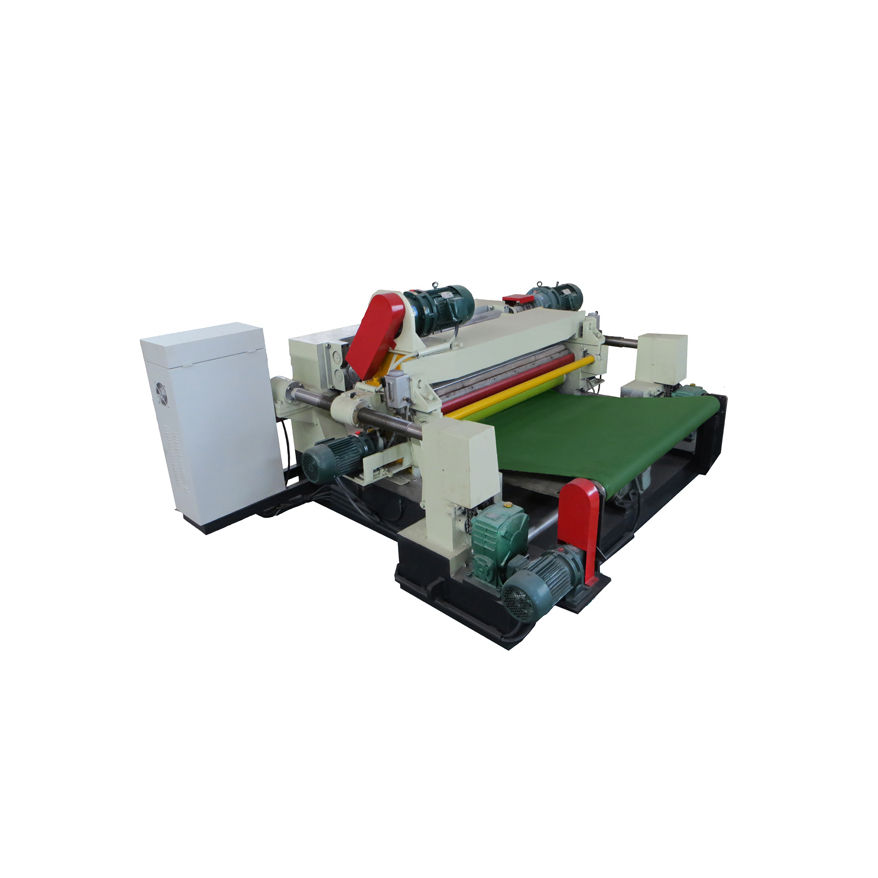

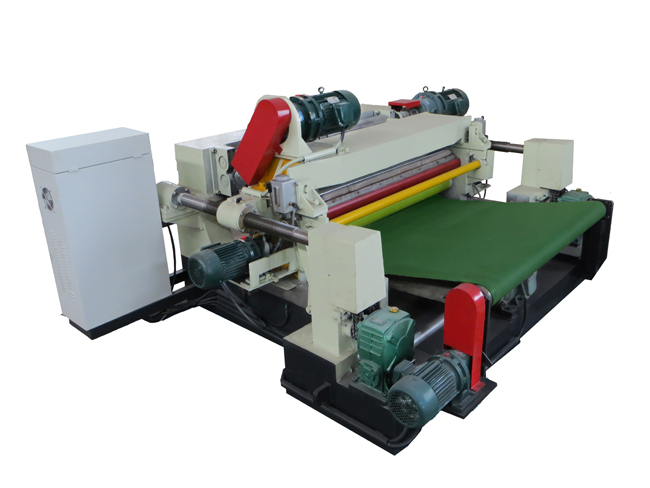

8ft Spindless Peeling Machine
BQJ2813/35-13A数控无卡切板一体机
BQJ2826/42-13A CNC Card free Cutting Plate Integrated Machine
The CNC cardless cutting machine is one of the equipment for producing plywood, which can spin cut wood cores or straight logs into veneers.
The integrated design of continuous rotation and cutting frees up labor, reduces production costs, and saves space.
★ Ultra large screw design to enhance strength.
The rollers are connected by end face keys to improve their service life and facilitate maintenance.
★ Cam type knife door self-adjusting device improves the quality of the single board and increases the upper limit of the maximum diameter for rotary cutting.
Main technical parameters
参数 型号 | BQJ2813/35-13A | BQJ2813/42-13A | BQJ2820/42-13A | BQJ2826/42-13A |
旋切刀长度（mm） | 1400 | 1400 | 2100 | 2700 |
最大旋切直径（mm） | 350 | 420 | 420 | 420 |
旋切出板速度（m/min） | 31.5-43 | 31.5-43 | 25-31.5 | 25-31.5 |
最小木芯直径（mm） | ≥28 | ≥28 | ≥28 | ≥28 |
旋切单板厚度（mm） | 0.8-2.8 | 0.8-2.8 | 0.8-2.8 | 0.8-2.8 |
切板宽度（mm） | 300-900 | 300-900 | 450-1400 | 600-1500 |
机床总功率（kW） | 20.3 | 27.8 | 31.8 | 38.1 |
